Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023

Ürün ayrıntıları:

Menşe yeri:	Çin yapımı
Marka adı:	Infinity Machine Inc.
Sertifika:	ISO
Model numarası:	C5092

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	Negotiate
Ambalaj bilgileri:	Şeffaf levha + sünger + ahşap karton
Teslim süresi:	Sipariş onaylandıktan sonra 35-40 gün
Ödeme koşulları:	T/T
Yetenek temini:	Ayda 200set

İletişim

Detaylı ürün tanımı

Ürün adı:	Otomotiv Kablo Döngüsel Bükme Test Cihazı	Modeli:	C5092
Başvuru:	kablolar döngüsel kablo bükme test makineleri, çok telli kablo, iletişim kablosu, kulaklık kablosu v	test standardı:	SFF 8417 Çok İletkenli Kablo Esnek Çevrim Test Prosedürü,
test miktarı:	2 adet	Test Hızı:	10~60rpm±2cpm (Sık sık 13rpm kullanıcısı)
Açı aralığı:	±90° / 0°~180°	Test döngüleri:	1 ¢ 999,999 kere
Güç:	Tek fazlı AC220V veya 120V±10%, 50/60Hz	Garanti:	1 Yıl
Vurgulamak:	automotive cable bending tester , cyclic bending test machine ISO 19642 , cable bending test equipment

Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023

Model C5092 - Cable Cyclic Bending Testing Equipment

This specialized testing machine evaluates the durability and conductivity of automotive cables, communication cables, earphone cables, and similar multi-wire products through cyclic bending tests.

Testing Methodology

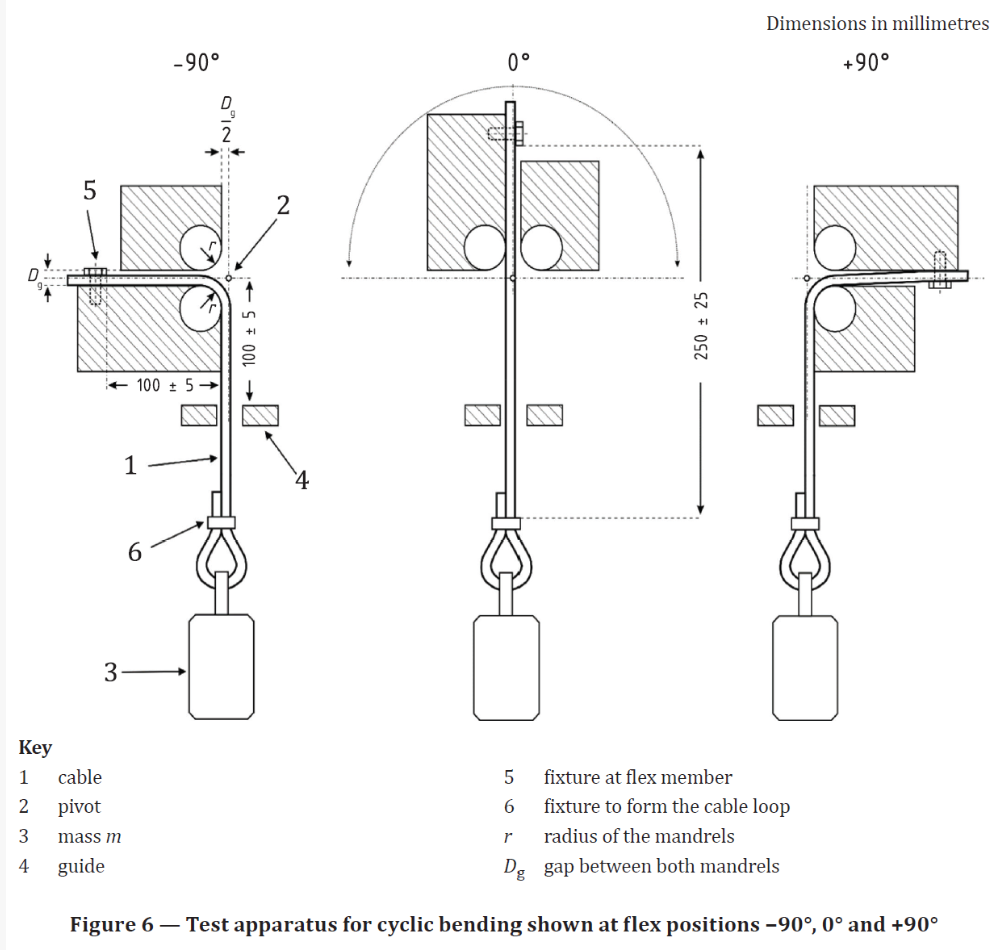

The testing process involves short-circuit connecting one end of the cable, fixing this end on the rotation plate, applying calibrated weights, and performing controlled left and right rotations. The equipment assesses cable conductivity after specified rotation cycles to evaluate overall cable quality and durability.

Compliant Test Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019
ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Specification	Details
Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (each 2 pcs)
Dimensions (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

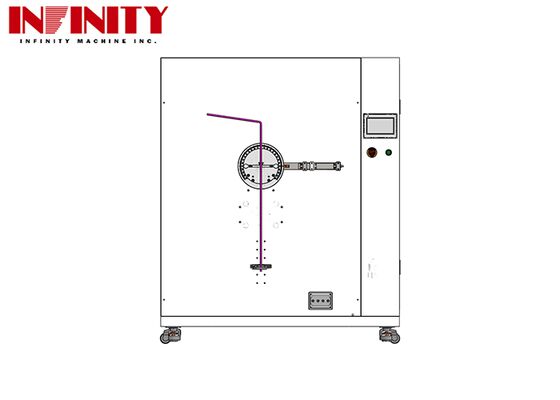

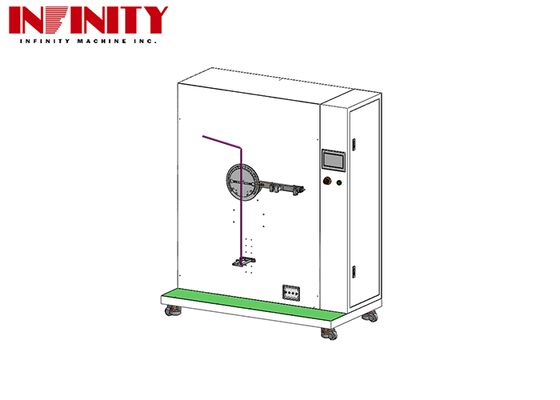

Product Appearance

Packaging and Shipping

Secure Packaging

Automotive cables cyclic bending testing machines are securely packaged in reinforced wooden crates to prevent any damage during transportation. Each crate is clearly labeled with shipping marks for easy identification and handling.

Reliable Shipping

All testing equipment is shipped through reliable and experienced shipping companies. Transportation is carefully arranged to ensure timely delivery and safe handling. Customers receive comprehensive tracking information to monitor shipment status throughout the entire delivery process.
