Name: ISO 19642-2:2023 Automotive Cable Cyclic Bending Fatigue Tester Cable Cycle Flex Test Machine
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50,050.00 USD
Availability: InStock

Ana sayfa Ürünler Deney Makinesi Bükme

ISO 19642-2:2023 Automotive Cable Cyclic Bending Fatigue Tester Cable Cycle Flex Test Machine

Ürün ayrıntıları:

Menşe yeri:	Çin yapımı
Marka adı:	Infinity Machine Inc.
Sertifika:	ISO
Model numarası:	C5092

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	Negotiate
Ambalaj bilgileri:	Şeffaf levha + sünger + ahşap karton
Teslim süresi:	Sipariş onaylandıktan sonra 35-40 gün
Ödeme koşulları:	T/T
Yetenek temini:	Ayda 50 takım

İletişim

Detaylı ürün tanımı

Ürün adı:	Otomotiv Kablo Döngüsel Bükme Test Cihazı	Modeli:	C5092
Başvuru:	kablolar döngüsel kablo bükme test makineleri, çok telli kablo, iletişim kablosu, kulaklık kablosu v	test standardı:	SFF 8417 Çok İletkenli Kablo Esnek Çevrim Test Prosedürü,
test miktarı:	2 adet	Test Hızı:	10~60rpm±2cpm (Sık sık 13rpm kullanıcısı)
Açı aralığı:	±90° / 0°~180°	Test döngüleri:	1 ¢ 999,999 kere
Güç:	Tek fazlı AC220V veya 120V±10%, 50/60Hz	Garanti:	1 Yıl
Vurgulamak:	automotive cable bending fatigue tester , cyclic flex test machine ISO 19642-2 , cable cycle bending test machine

ISO 19642-2:2023 Automotive Cable Cyclic Bending Fatigue Tester

Product Overview

The Cable Cycle Flex Test Machine Model C5092 is designed for comprehensive bending fatigue testing of various cable types including multi-conductor cables, communication cables, data cables, robot cables, automotive cables, and earphone wires.

Testing Purpose

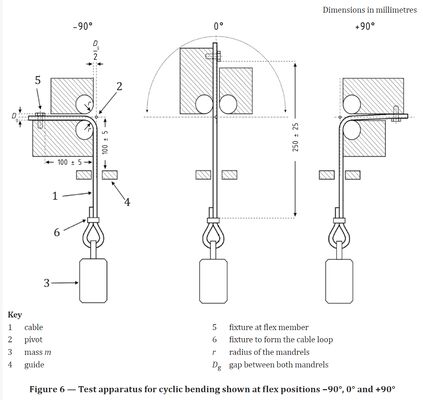

This specialized testing equipment performs cyclic bending evaluations by short-circuit connecting one end of the cable, fixing it on a rotation plate, applying specified weights, and conducting left-right rotation cycles. The system monitors cable conductivity throughout testing to assess durability and quality performance.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019
ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Parameter	Specification
Model	C5092
Test Capacity	2 PCS
Test Speed	10~60rpm±2cpm (Typically 13rpm)
Angle Range	90°
Minimum Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (4 changeable sets)
Rotation Plate Diameter	275mm
Weights	100g, 200g, 500g, 1000g (customizable)
Dimensions (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A (user specified)

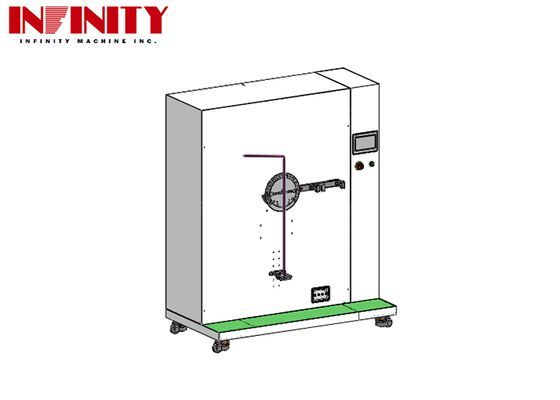

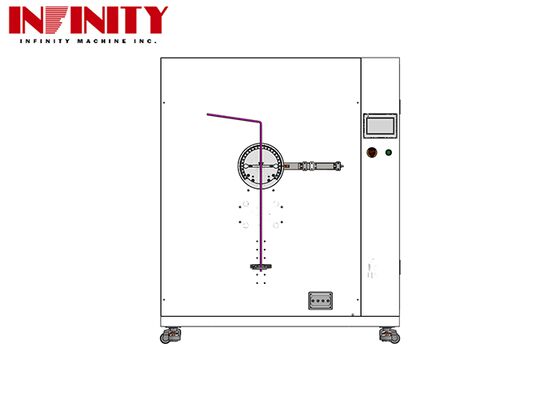

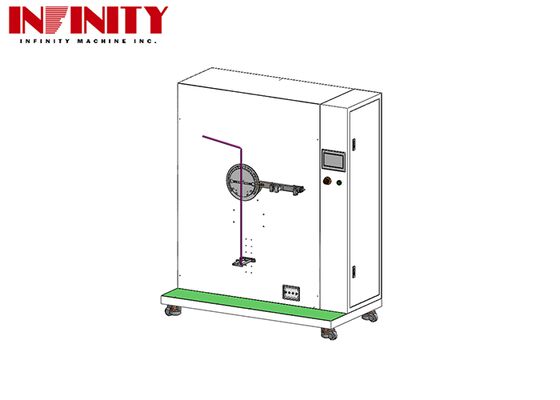

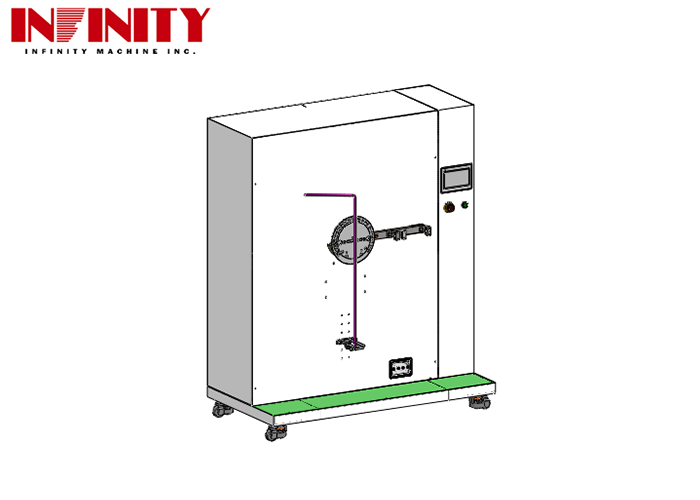

Product Appearance

Packaging & Shipping

Each automotive cable cyclic bending testing machine is securely packaged in protective wooden crates to ensure damage-free transportation. All shipping containers are clearly labeled with identification marks for easy handling.

We partner with reliable shipping companies to manage transportation, ensuring timely delivery and proper handling. Customers receive complete tracking information to monitor shipment status throughout the delivery process.
