UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
Ürün ayrıntıları:
Menşe yeri: ÇİN YAPIMI
Marka adı: Infinity Machine Inc.
Sertifika: ISO
Model numarası: IE60 serisi
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Negotiate
Ambalaj bilgileri: Şeffaf levha + sünger + ahşap karton
Teslim süresi: Sipariş onaylandıktan sonra 20-30 gün
Ödeme koşulları: T/T
Yetenek temini: Ayda 200set
İletişim
Detaylı ürün tanımı
Ürün Adı: UV Test Odası Modeli: IE60 serisi
Sıcaklık Aralığı: RT+20℃~70℃ Nem aralığı: ≥90% bağıl nem
Geçerli standart: ISO 4892-3 、 ISO 11507; ASTM D4329 、 D499 、 D4587 、 D5208 、 G154 、 G53 ; Özellik: Ekipman kontrolünün otomatik çalışması, otomatik test döngüsü, emek tasarrufu, test verimliliğini ar
Kutu yapısı: İç ve Dış Mekan Kutuları: İç ve Dış Mekan Kutularında SUS304# Paslanmaz Çelik Kullanılmaktadır Örnek tutucu: Alüminyum çerçeve tipi taban çerçevesi görüş plakası, 24 adet
Güç: Elektronik Garanti: 1 Yıl

UV Weathering Test Chamber Environmental Test Chambers IE6002 IE6002A
Equipment Overview

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber 0
Applicable Standards
  • ASTM D4329, D499, D4587, D5208, G154, G53
  • ISO 4892-3, ISO 11507
  • EN 534; EN 1062-4; BS 2782; JIS D0205; SAE J2020
Key Features
  • Using the original American UV lamp, the light stability is good, and the test results are high reproducibility
  • Provides the best sunlight UV simulation, low maintenance and easy to use
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency
Specification Parameters
Parameter IE6002 IE6002A
Temperature range RT+20℃~70℃
Humidity range ≥90%RH
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
Center distance inside the lamp 70mm
Distance between specimen and lamp center 50±3mm

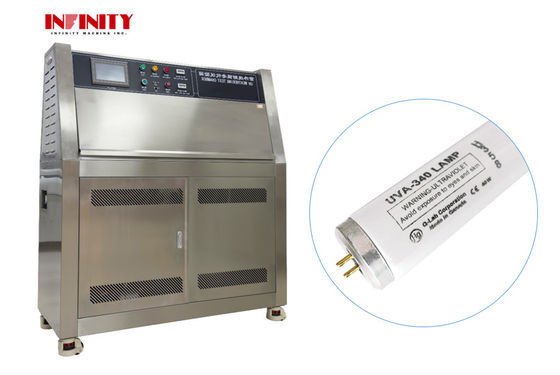

Modulator tube UVA-340 L=1200/40W, 8pcs UVB-313 L=1200/40W, 8pcs
Irradiance Adjustable within 1.2W/m² Adjustable within 1.0W/m²
Ultraviolet wavelength 315-400nm 280-315nm
Effective irradiation region 900*210mm
Irradiated blackboard temperature 50℃~70℃
Internal dimension: W*H*D (mm) 1140*400*390
Outside box size: W*D*H (mm) 1300*500*1360
Box structure Indoor and outdoor boxes: SUS304# stainless steel
Sample holder Aluminum frame type base frame vision plate, 24pcs
Standard sample size 75*290mm
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply AC220V, 50Hz, 5KW
Special specifications need to be specified
Product Packaging

UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
