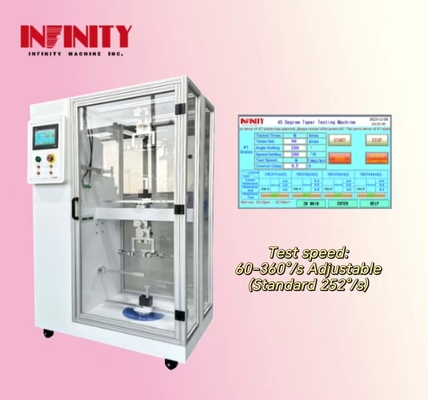

Stable Performance Dual Station Wire 45°Cone Pull Test Machine for Earphone Wire

                Stable Performance Dual Station Wire 45°Cone Pull Test Machine for Earphone Wire

                                                                                         Model: IC1362

Application:

Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test.

Features:

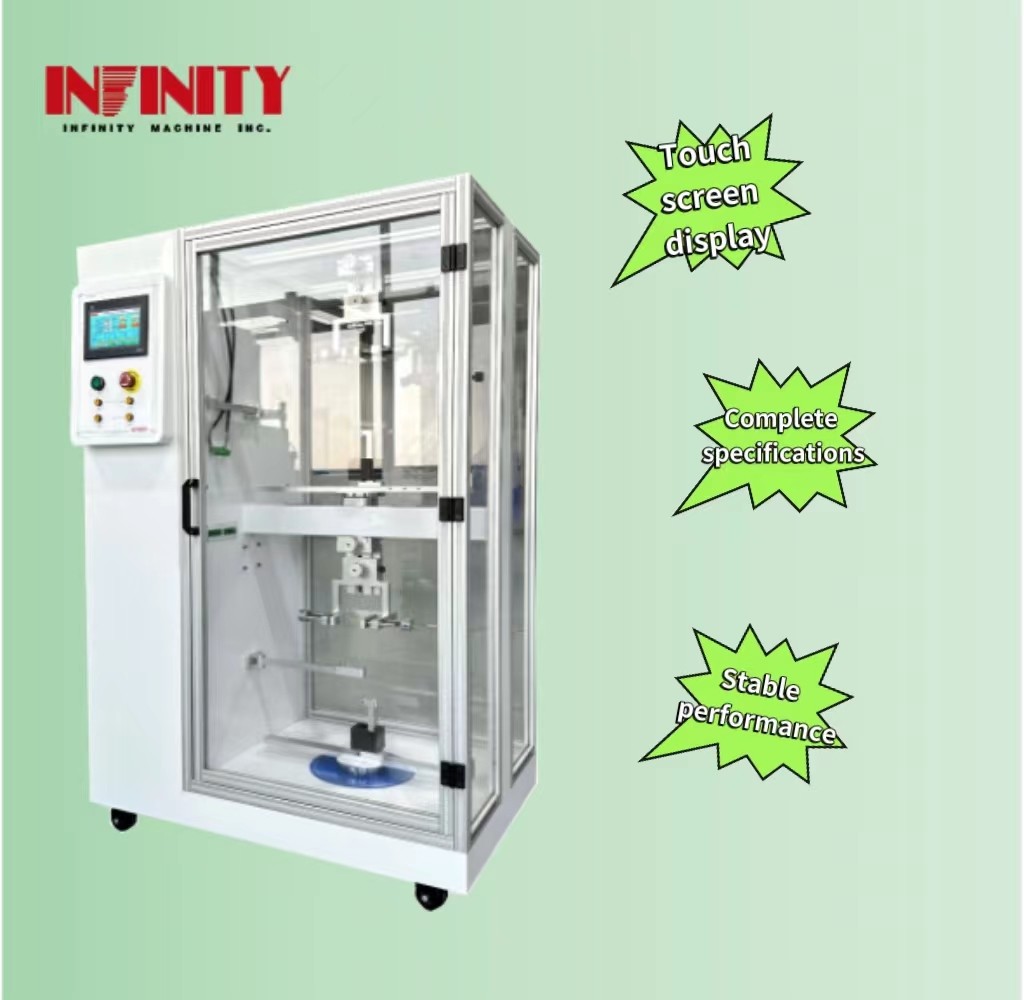

• Dual station design, independent control, greatly save the test space, transparent protective cover design, not only convenient to observe the test status and improve the safety of the equipment.
• Taiwan WEINVIEW touch screen + Japan Mitsubishi PLC is used for program control. The test conditions can be input in the touch screen, and the test conditions and test times can be displayed in real time.
• It is driven by Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, Japan Mitsubishi synchronous belt transmission, the test Angle is accurate and controllable, good repeatability and durable use.
• With the function of detecting wire conduction, the wire is disconnected during the test, and stop the alarm immediately.
• It has the function of detecting the resistance change of wire, and can set the upper and lower limits. If the resistance exceeds the limit during the test, stop the alarm immediately.

Specifications:

Test method:

1.Attach one end of the power cable or headphone cable on the fixture, as shown in the following figure, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight).

2. Set the speed to 252 degrees / second, the rotation Angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good.

3. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm.

Software interface:

Machine size:

Related product recommendation:

1.KICK Yank Tester :Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test.

2.Wire Swing Life Testing Machine IN-B6303:mainly used for small household appliances. Perform a lifting and swinging test at the connection point of the charger.

3.Five Stations Wire Swing Testing Machine:Suitable for multi-core cable, communication cable, headphone cable, flat cable, signal cable, charging cable and other wires for swinging and bending resistance test.

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.

Packing and Shipping:

Product Packaging:

The Wire Pull Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Shipping:

The shipping of the Wire Pull Tester will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
